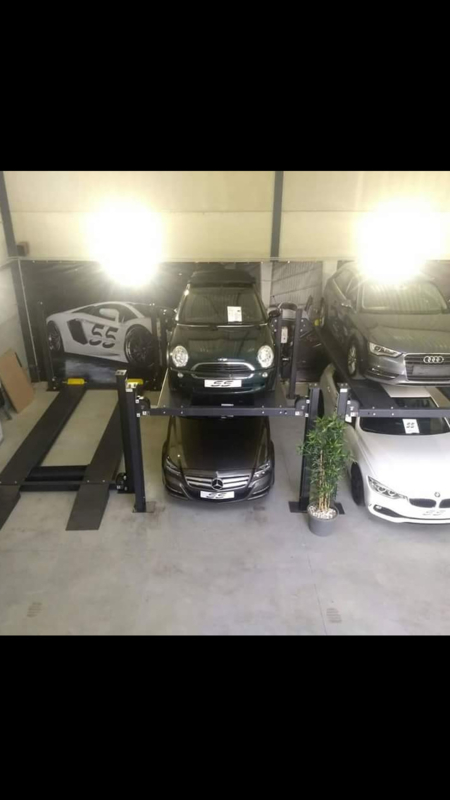

4 koloms hefbrug Peak 407P/430P Parkeer hefbrug (rijbaan 3.85mtr)

Artikel 4 van 4
€ 1.899,00 (exclusief btw)
Voorraad 3 stuks

.

ModelA430-P
Lifting Capacity3000kg
Lifting Time31s

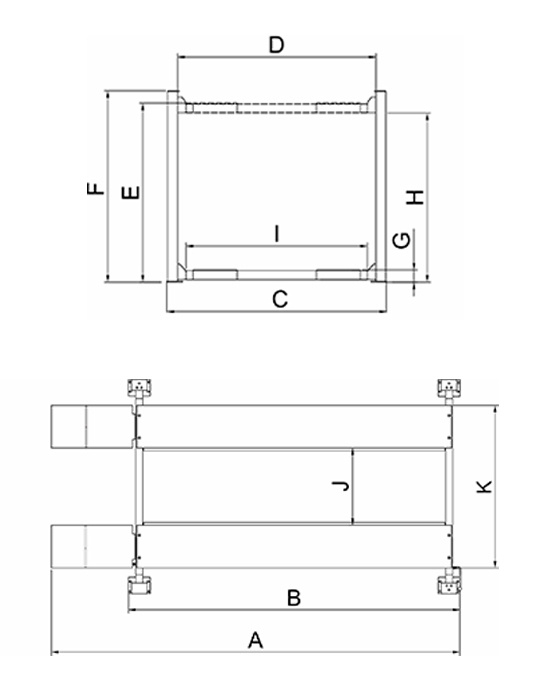

A: Overall Length (Inc Ramps)4720mm
B: Overall Length (No Ramps)3877mm
C: Overall Width2409mm
D: Width Between Posts2167mm
E: Max. Lifting Height1872mm
F: Overall Height2105mm
G: Minimum Height135mm
H: Max.Underneath Height1772mm
I: Drive-Thru Clearance1956mm
J: Width Between Runways940mm
K: Outside Edge of Runways1890mm
Gross Weight700kg
Motor220V, 50Hz ,3.0HP
